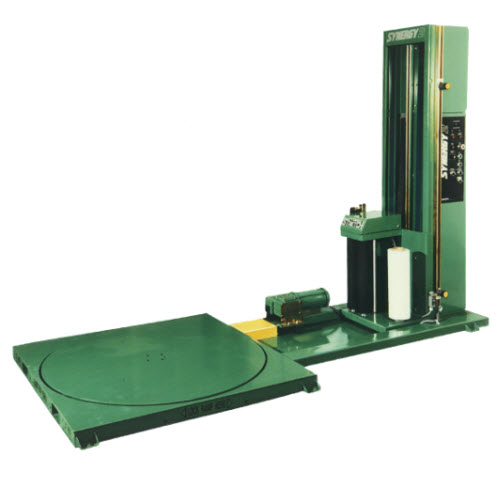

Highlight Synergy 2.5 Low Profile

LP SYNERGY 2.5 500x500 2

Video

Semi-Automatic Turntable Stretch Wrapper

The Synergy 2.5 is the most reliable fixed gear powered pre-stretch system in the industry! The simple and reliable powered pre-stretch provides greater film savings and performance, and the semi-automatic controls allow for excellent productivity and consistent wrapping.
  • 5,000 lbs load weight capacity
  • Durable design and all-steel construction make for long lasting and reliable use
  • Allen-Bradley PLC provides advanced capabilities and flexibility, and the simple user interface makes operation easy
  • Powered Pre-Stretch system provides greatly increased film savings and performance
  • Choose a gear ratio from 150% to 300% to best suit your wrapping needs
  • All-steel construction and over-engineered design make this a durable and reliable machine for decades of use

Powered Pre-Stretch

    • 200% standard
    • Other gear ratios available

Turntable

    • High profile: 48” x 48” octagonal, 12 RPM
    • Low profile: 57” diameter, 12 RPM

High Profile

    • Can be easily loaded with a fork lift

Low Profile

    • Can use an optional ramp for loading with hand pallet jacks

Wrap Height

    • High Profile up to 72”
    • Low Profile up to 80”

Film Capacity

    • 10″ diameter
    • 10″-20″ roll width

Standard Capacity

    • 4,000 lbs (high profile)
    • 5,000 lbs (low profile)

Operating Controls

    • Allen-Bradley MicroLogix 1200 PLC

Turntable Drive Motor

    • 3/4 HP baldor AC

Carriage Lift Motors

    • 3/4 HP baldor AC

Electrical Requirements

    • 120 Volts, 20 Amp

Machine Weight

    • 1,500lbs (high profile)
    • 2,100lbs (low profile)

Two-Sided Cling

    • Item #370267, 20″ x 5000′ 75ga Castle cast machine stretch film, 40 rolls/skid
    • Item #370264, 20″ x 5000′ 80ga Castle cast machine stretch film, 40 rolls/skid
    • Item #370265, 20″ x 5000′ 80ga Castle cast machine stretch film boxed, 40 rolls/skid
    • Item #370335, 20″ x 4000′ 115ga Castle cast machine stretch film, 40 rolls/skid
    • Item #370329, 20″ x 4000′ 120ga Castle cast machine stretch film, 40 rolls/skid
    • Item #370330, 30″ x 4000′ 120ga Castle cast machine stretch film, 20 rolls/skid

Differential Cling

    • Item #370268, 20″ x 6000′ 70ga Castle cast machine stretch film, 40 rolls/skid

One-Sided Cling

    • Item #370274, 20″ x 8000′ 55ga SSC Castle cast machine stretch film, 40 rolls/skid
    • Item #370266, 20″ x 5000′ 63ga SSC Castle cast machine stretch film, 50 rolls/skid
    • Item #370303, 20″ x 6000′ 70ga SSC Castle cast machine stretch film, 40 rolls/skid
