Highlight Synergy .5 Low Profile

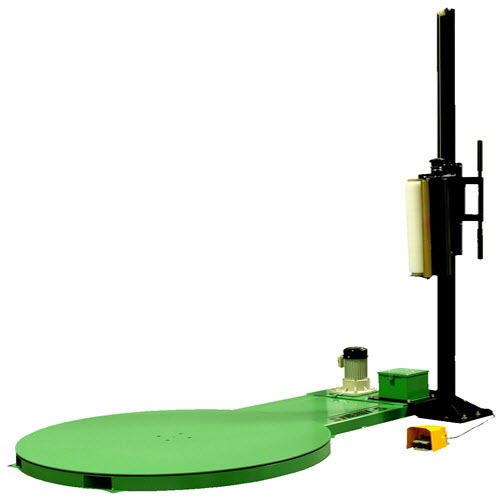

LP SYNERGY.5 500x500 1

Video

Spiral Turntable Stretch Wrapper

The Synergy .5 Spiral is the affordable solution to stretch wrap your loads without stretching your budget. The Synergy .5 delivers the same high quality and high performance that Highlight is famous for, at an affordable price.

  • 4,000 lbs load weight capacity
  • Operator can wrap from a standing position
  • Safe soft-start 120V motor operates easily with foot pedal at speeds up to 12 RPM
  • 48″ diameter steel diamond plate turntable
  • Flexible, shock absorbing coupling
  • Forkliftable from 2 sides
  • Cord Length: 10 Ft
  • Powered turntable and counterweighted carriage reduce stress and injuries
  • Sturdy mast and Stretch-Set™ features allow for tighter wrapping, more secure loads, and less product damage on the road

Simple Controls

    • Turntable dial adjusts from 0 to 12 RPM
    • ON/OFF Foot switch controls turntable rotation
    • Film stretch and tension set using adjustment knob

Lift Carriage

    • Counterbalanced lift carriage for minimal lift effort

Stretch-Set

    • Uses Highlight’s patented Stretch-Set™ tension system to maximize film stretch with the turn of a knob

High Profile

    • Can be easily loaded with a fork lift

Film Capacity

    • Accepts 12” to 18” handwrap roll with up to a 6.5” diameter
    • Designed for use with common hand film dimensions for easy machine transitions

Stretch-Set™

    • Adjustable 20% to 100%

Turntable

    • 48”x48” Octagonal, 12 RPM

Wrap Height

    • Up to 70”

Film Carriage

    • Manual, Counterweighted

Film Capacity

    • 6.5” Roll Diameter, 12”-18” Roll Width

Load Weight Capacity

    • Low & High Profile 4,000 pounds

Turntable Drive Motor

    • 1/2 HP AC

Electrical Requirements

    • 120 Volts, 15 Amp

Machine Weight

    • 800 Pounds

Two-Sided Cling

    • Item #370267, 20″ x 5000′ 75ga Castle cast machine stretch film, 40 rolls/skid
    • Item #370264, 20″ x 5000′ 80ga Castle cast machine stretch film, 40 rolls/skid
    • Item #370265, 20″ x 5000′ 80ga Castle cast machine stretch film boxed, 40 rolls/skid
    • Item #370335, 20″ x 4000′ 115ga Castle cast machine stretch film, 40 rolls/skid
    • Item #370329, 20″ x 4000′ 120ga Castle cast machine stretch film, 40 rolls/skid
    • Item #370330, 30″ x 4000′ 120ga Castle cast machine stretch film, 20 rolls/skid

Differential Cling

    • Item #370268, 20″ x 6000′ 70ga Castle cast machine stretch film, 40 rolls/skid

One-Sided Cling

    • Item #370274, 20″ x 8000′ 55ga SSC Castle cast machine stretch film, 40 rolls/skid
    • Item #370266, 20″ x 5000′ 63ga SSC Castle cast machine stretch film, 50 rolls/skid
    • Item #370303, 20″ x 6000′ 70ga SSC Castle cast machine stretch film, 40 rolls/skid
