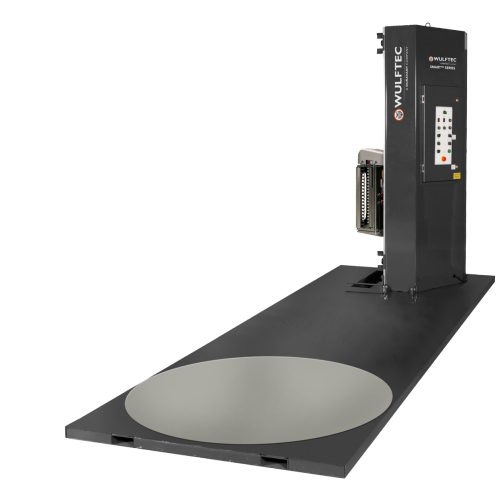

Wulftec SML-EXT

Semi-Automatic Turntable Stretch Wrapper

The SML-EXT model, a standard base low-profile turntable as the ideal stretch wrapping solution for your unique needs.

  • 5,000 lbs load weight capacity
  • NEMA 4/12 control panel dust tight and waterproof
  • The control panel is UL508A approved
  • 100% Structural Steel Construction
  • Superior Electrical/Electronic Design including Allen Bradley MicroLogix PLC and AC drives
  • Wulftec’s exclusive 20″ NO-THREAD® Powered Pre-Stretch Carriage (30″ optional)
  • Easily available non-proprietary parts
  • State-of-the-art electrical control panel with all finger safe electrical components
  • Carriage lifting chains enclosed inside tower for operator safety
Production Rate
    • 55 loads per hour
Machine Dimensions
    • 141.50″ L
    • 66″ W
    • 86.50″ H
Load Weight
    • 5000 lbs
Approximate Shipping Weight
    • 2800 lbs
Electrical Requirements
    • 120 V / 1 ph / 60Hz 15A
Controls
    • Allen Bradley MicroLogix 1000 or 1200 PLC
    • 24V control system
    • Current overload protection
    • NEMA 4/12 control cabinet
    • Autoheight sensing photoeye
    • Power light indicator (Basic)*
    • Power on/off switch and status light (Standard)*
    • Start/stop push button
    • Large emergency stop (push / pull type)
    • Manual carriage up/down function
    • Variable table speed (16 RPM) with automatic home position with automatic home position
    • Carriage speed adjustment
    • Top and bottom wrap selectors
    • Reinforced wrap/manual rotation control
    • Film tension adjustment
    • Lack of film alarm
Structure
    • 14 gauge formed steel tower
    • Forklift Portable base design from both ends
    • Heavy duty structural steel construction
Film Delivery System
    • 20″ NO-THREAD® Powered Pre-Stretch Carriage
    • 1 HP AC motor with Allen Bradley variable frequency drive
    • Lifetime warranty on pre-stretch rollers blue compound
    • Film force release for easy pull at start and end of cycle
    • 50-400% pre-stretch ratio (preset to customer spec, Std ext%)
    • Electronic film tension control with analog sensor
    • Film roping bar
    • Lexan roller cover for operator safety
    • Proximity sensor on carriage gate to ensure gate is properly closed
Film Carriage Drive
    • 1 HP AC motor with Allen Bradley variable frequency drive
    • Two #50 carriage lifting chains enclosed in tower for safety
    • Bearing supported maintenance free guide wheels
Turntable
    • 65″ dia. 3/8″ steel plate
    • 32 heavy duty non metallic lube-free table supports
    • 3″ table height
    • 2-3/8″ high base
    • Ramp accessible on all three sides (consult factory when ordering more than one ramp)
Turntable Drive
    • 0-16 RPM variable speed
    • 1 HP AC motor with Allen Bradley variable frequency drive
    • #50 ANSI heavy duty chain drive
    • Electronic soft start/stop
    • Positive turntable alignment controlled by proximity sensor
Technical Information
    • The machine is provided with a manual including electro/mechanical schematics and drawings, troubleshooting guide & Installation instructions
Notes:
    • Optional
    • Production rate based on load configuration and machine options
    • Overall dimensions of machine in operation
    • All machine specifications are subject to change without prior notice
    • Please consult us for prices

Two-Sided Cling

    • Item #370267, 20″ x 5000′ 75ga Castle cast machine stretch film, 40 rolls/skid
    • Item #370264, 20″ x 5000′ 80ga Castle cast machine stretch film, 40 rolls/skid
    • Item #370265, 20″ x 5000′ 80ga Castle cast machine stretch film boxed, 40 rolls/skid
    • Item #370335, 20″ x 4000′ 115ga Castle cast machine stretch film, 40 rolls/skid
    • Item #370329, 20″ x 4000′ 120ga Castle cast machine stretch film, 40 rolls/skid
    • Item #370330, 30″ x 4000′ 120ga Castle cast machine stretch film, 20 rolls/skid

Differential Cling

    • Item #370268, 20″ x 6000′ 70ga Castle cast machine stretch film, 40 rolls/skid

One-Sided Cling

    • Item #370274, 20″ x 8000′ 55ga SSC Castle cast machine stretch film, 40 rolls/skid
    • Item #370266, 20″ x 5000′ 63ga SSC Castle cast machine stretch film, 50 rolls/skid
    • Item #370303, 20″ x 6000′ 70ga SSC Castle cast machine stretch film, 40 rolls/skid
